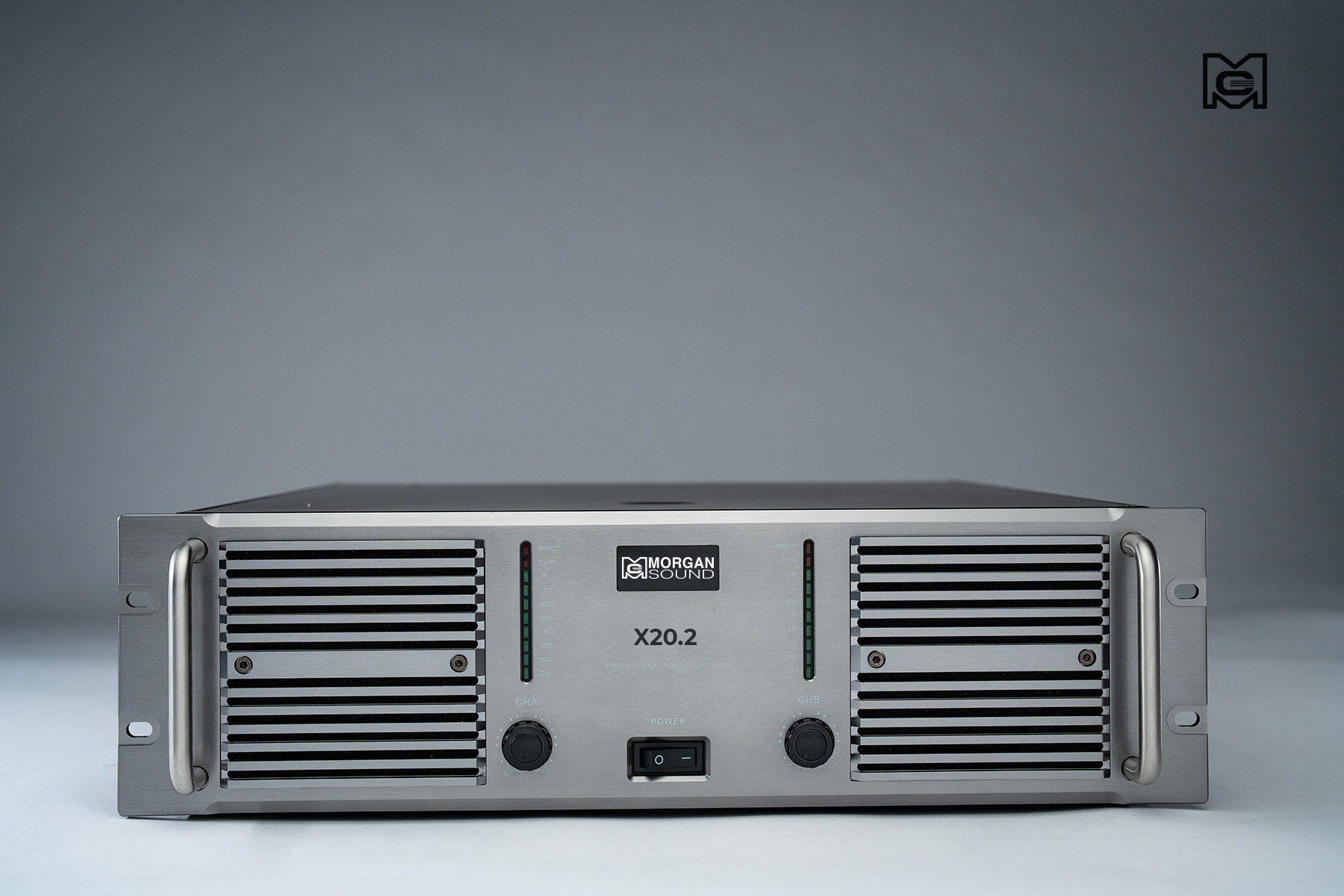

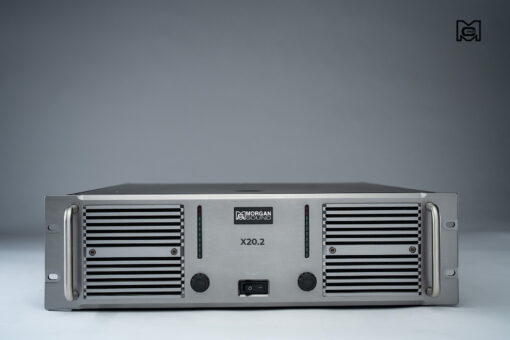

Amplifier Morgan Sound X20.2 The Perfect Match for Subwoofer 218 and 221

When it comes to delivering earth-shaking bass for professional audio systems, the Morgan Sound X20.2 amplifier stands out as a powerhouse designed to pair seamlessly with high-performance subwoofers like the Subwoofer 218 and Subwoofer 221. Whether you’re setting up a concert stage, nightclub sound system, or large-scale event, this amplifier’s cutting-edge technology and robust specifications make it an ideal choice. In this article, we’ll explore why the Morgan Sound X20.2 is tailored for these subwoofers, diving into its technical specs, features, and real-world performance.

---

Why Choose the Morgan Sound X20.2 for Subwoofer 218 and 221?

The Morgan Sound X20.2 is a Class TD amplifier engineered for efficiency, power, and precision—qualities that perfectly complement the demands of subwoofers like the 218 and 221. With a maximum output power of 2500W at 8Ω per channel and up to 9000W in bridge mode at 4Ω, this amplifier ensures your subwoofers deliver deep, distortion-free bass even under heavy loads. Let’s break down its compatibility and standout features.

Key Power Specifications Amplifier Morgan Sound X20.2

Subwoofers 218 and 221—typically high-power units used in professional setups—require an amplifier that can match their RMS ratings while providing headroom for dynamic peaks. The TD2.25’s ability to drive 5200W at 2Ω per channel or 9000W in bridge mode ensures it can handle even the most demanding low-frequency applications.

---

Technical Specifications

• Overall Gain: 32dB
• Sensitivity at 8Ω: 0.775V / 1.4V / 32dB
• Signal-to-Noise Ratio (A-weighted, 0dB): >100dB
• Frequency Response (-1dB): 20Hz – 20kHz
• Typical THD (Half Power, 1kHz, 8Ω): <0.05%
• Typical IMD (1kHz at 4:1, -20dB): <0.1%
• Crosstalk (1kHz): >70dB
• Slew Rate: >13V/µs
• Input Impedance: 20kΩ (balanced) / 10kΩ (unbalanced)
• Damping Factor (1kHz, 8Ω): >700
• Protections: Soft-Start, Short-Circuit, Over and Under-Voltage, Over-Current, VHF, Over-Load, DC Output, Temperature, SOM (Smart Overhead Management)
• Operating Voltage: ~180-250VAC 50-60Hz

---

Designed for Subwoofer 218 and 221: Real-World Compatibility

While exact specs for Subwoofer 218 and 221 may vary by manufacturer, these models are typically dual 18-inch or 21-inch drivers with RMS ratings between 1000W and 2000W and impedances of 4Ω or 8Ω. The Morgan Sound X20.2 aligns perfectly with these requirements:

• Stereo Mode: Drive each subwoofer independently with up to 2000W at 8Ω or 3200W at 4Ω per channel.
• Bridge Mode: Combine both subwoofers into a single load for a massive 6400W at 8Ω or 8000W at 4Ω—ideal for parallel configurations.

The TrueRMS VCA limiter and Ultra Low Noise design further ensure that the bass output remains clean and undistorted, even at peak volumes—a must for professional subwoofer applications.

---

Additional Features for Professional Audio Setups

Preamp and Power Supply

• Proprietary PureSound Circuit with audiophile-grade capacitors enhances audio clarity.
• Advanced Linear Power Supply with 105C Long-Life Capacitors guarantees stable performance over time.

Rear Panel Connectivity

• NEUTRIK XLR Inputs/Links and Speakon NL4 Outputs provide secure, industry-standard connections.
• Mode Switch (Stereo/Parallel/Bridge) offers flexibility for different subwoofer setups.

Super powerful product

• Dimensions: 19” 3U Height, 462mm Depth
• Weight: 42.5kg (net)
  Despite its power, the X20.2 remains rack-mountable and manageable for touring or fixed installations.

---

How to Optimize the amplifier MORGAN SOUND X20.2 with Subwoofer 218 and 221

To get the best performance:

1. Match Impedance: Check the subwoofers’ impedance (e.g., 4Ω or 8Ω) and configure the MORGAN SOUND X20.2 accordingly.
2. Set Sensitivity: Use the 0.775V / 1.4V / 32dB switch to align with your mixer or DSP output.
3. Wiring: Follow the Speakon wiring guide (SPK1: 1+ = CH A / 2+ = CH B. SPK2: 1+ = CH B / 2+ = Not Used) for correct connections.
4. Gain Control: Avoid overdriving by keeping gain within 1.5x–2x the subwoofers’ RMS rating.
