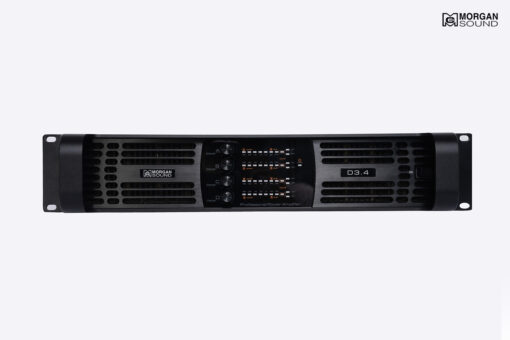

Power Amplifier MORGAN SOUND D3.4
- High power, high ffeiciency, and high-performance class D power amplifier cicruit. Ultra-high power regulated switching power supply.
- Up to 510A high current high-frequency MOS transistor output stage with lower output internal resistance.
- Can work stably for a long time at low impedance of 2Ω.
- The specially designed output circuit provides clearer, wider, and more delicate sound.
- The aluminum panel with wire drawing process is stable, beautiful, and durable, with a high-end and atmospheric appearance.
- Soft start upon startup, overload, overheating, short circuit, DC output, peak voltage limit, intelligent peak shaving protection.
Power Amplifier MORGAN SOUND D3.4
| Channel number | 4 CH |
| 8Ω Output power/per channel | 1800W |
| 4Ω Output power/per channel | 3500W |
| 2Ω Output power/per channel | 4500W |
| 8Ω Bridged Power | 4500W |
| 4Ω Bridged Power | 5000W |
| Frequecy Response | 20Hz-20KHz |
| Total harmonic distortion | <0.01% |
| Input Sensitivity | 0.775V, 1.0V, 32dB |
| Slew Rate | 30V/μs |
| Damping Coefficient (100Hz) | >500:1 |
| Signal Noise Ration | 105dB(A) |
| Channel Separation | >65dB |
| Net Weight | 13.2 Kg |
| Packing Dimensions | 580 x 520 x 185mm |
| Operating Voltage | AC 180V/50-60Hz |
