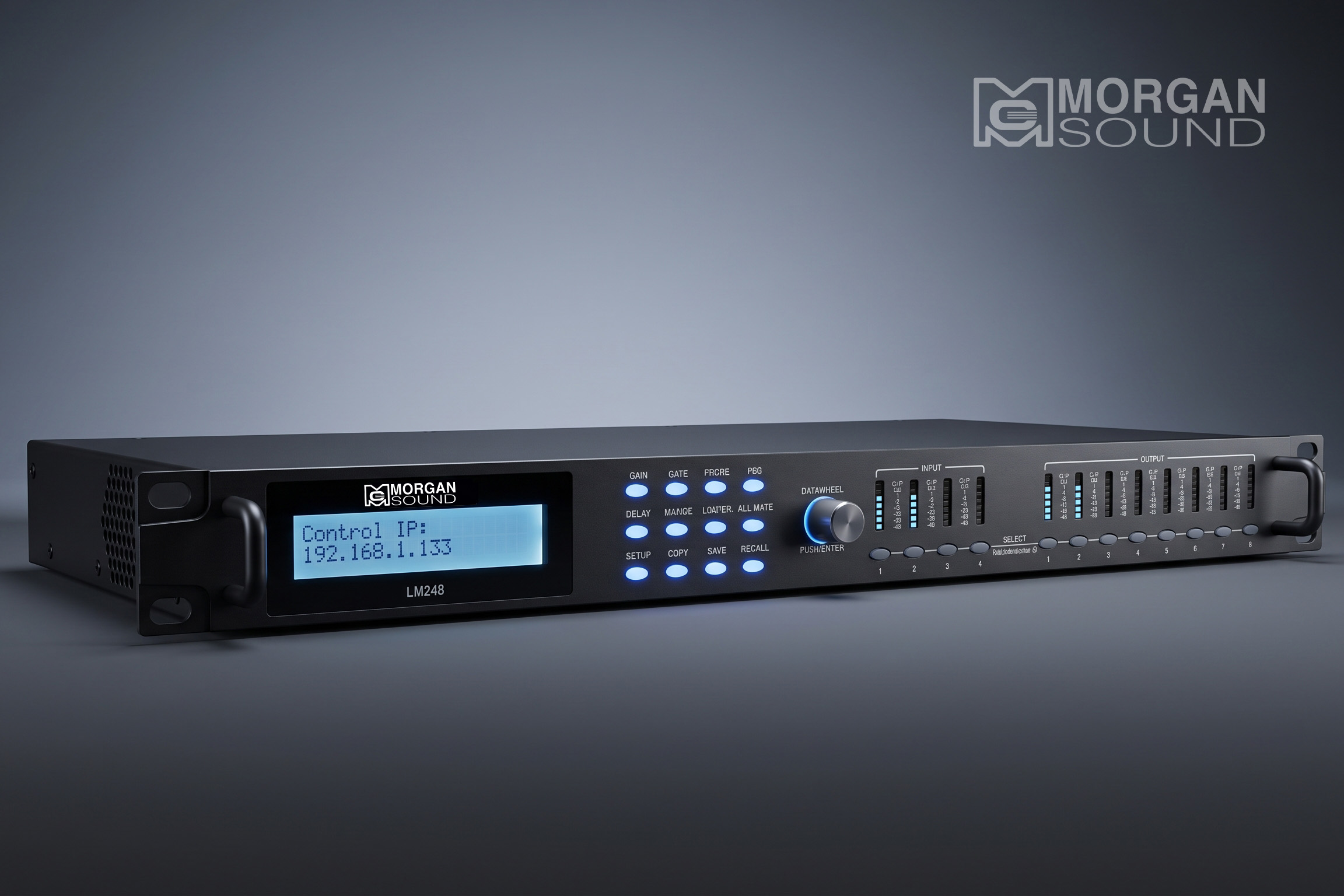

DSP MORGAN SOUND LM248 4 In/8 Out Digital Speaker Processor
The Crossover Digital utilizes 32-bit DSP conversion processing and high-performance 24-bit AD/DA, with a 96kHz sampling rate.
- It features 4 input channels and 8 output channels, with professional calibration software.
- Supports 128 preset modes, and the status of the entire unit as well as each individual preset can be stored and recalled separately.
DSP Morgan Sound LM248 4 In/8 Out Digital Speaker Processor LM Serial
This 4-input 8-output loudspeaker processor uses the latest fourth-generation SHARC ADSP-21488 400Mhz floating point DSP with powerful DSP processing capabilities.
Each input and output has a 16-band parametric filter, gain control, noise gate function, RMS limiter, built-in pink/white noise generator, and adjustable delay.
The slope of the divider ranges from 6dB/Oct to 48dB/Oct.
The delay step accuracy is 0.01ms, and the level gain accuracy is 0.1dBu, which can meet the good scene adjustment.
The delay step accuracy is 0.01ms, and the level gain accuracy is 0.1dBu, which can meet the good scene adjustment.
FEATURES MORGAN SOUND LM248
• ADSP-21488 400Mhz floating point DSP (48K model)
• Input 16-band PEQ, output 16-band PEQ
• 100M Ethernet port
• The PC software automatically discovers the processor
• Can store 32 system presets
• Fast copy of channel parameters
• DSP and ARM firmware can be upgraded over Ethernet
• Input 16-band PEQ, output 16-band PEQ
• 100M Ethernet port
• The PC software automatically discovers the processor
• Can store 32 system presets
• Fast copy of channel parameters
• DSP and ARM firmware can be upgraded over Ethernet
Comparison table of specifications between LM248 and LM348.
|
LM248 48K
|
LM348 96K
|
|
|
Max input level
|
18dBu
|
20dBu
|
|
Max output level
|
18dBu
|
20dBu
|
|
Default output level
|
0dBu
|
0dBu
|
|
THD+N
|
<0.005%@+4dBu 20Hz~20kHz
|
<0.005%@+4dBu 20Hz~20kHz
|
|
Frequency response
|
20Hz-20kHz ±0.3dB
|
20Hz-20kHz ±0.3dB
|
|
Background noise
|
-89dBu(unweighted)
|
-92dBu(unweighted)
|
|
Dynamic range
|
106dB
|
110dB
|
|
SNR(signal noise ratio)
|
-106dB
|
-110dB
|
|
Dynamic range of ADC
|
CS5361 114dB
|
PCM4202 118dB
|
|
Dynamic range of DAC
|
CS4381 114dB
|
PCM1798 123dB
|
|
DSP
|
ADSP-21488 400Mhz
|
ADSP-21489 400Mhz
|
|
Sampling frequency
|
48K
|
96K
|
|
Quantization
|
24Bit
|
24Bit
|
|
Pattern storage
|
32
|
32
|
|
Control mode
|
100M Ethernet
|
100M Ethernet
|
|
Noise gate
|
With
|
With
|
|
Feedback suppressor
|
With
|
With
|
|
Signal generator
|
With
|
With
|
|
Compressor
|
12 individual Pre/Post-fader
|
12 individual Pre/Post-fader
|
|
Delayer
|
256 milliseconds after sound mixing
|
1 second before sound mixing, 2 seconds after sound mixing
|
|
PEQ
Low Shelf
High Shelf
|
16 individual bands Pre/Post-fader
|
12 individual bands Pre/Post-fader
|
|
HP(High Pass Filter)/
LP(Low Pass Filter)
Bessel
Butterworth
Link-Riley
|
12 individual Pre/Post-fader
-6dB/oct
-12dB/oct
-18dB/oct
-24dB/oct
-36dB/oct
-48dB/oct
|
12 individual Pre/Post-fader
-6dB/oct
-12dB/oct
-18dB/oct
-24dB/oct
-36dB/oct
-48dB/oct
|
Key Attributes
Industry-Specific Attributes
- Warranty: 2 years
Other Attributes
- Brand Name: MORGANSOUND
- Model Number: LM248
- Power: 35W
- Voltage: 110-240V
- Frequency Response Rate: 20Hz – 20KHz
- Feature: High Quality
- Material: Plastic, Metal
Packaging and Delivery
- Selling Units: Single item
- Single Package Size: 48 x 31 x 11 cm
- Single Gross Weight: 3.800 kg
