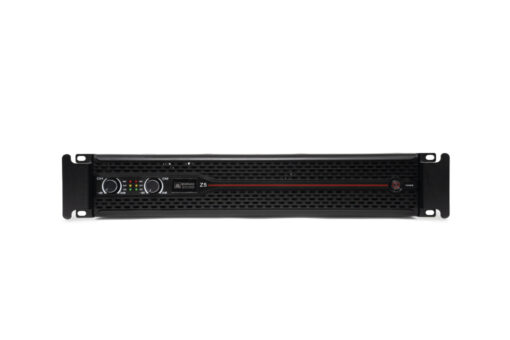

Power Amplifier MORGAN SOUND Z5
- Large power output: 1200W x 2 channels
- Utilizes a switching power supply, ensuring high working efficiency and stable operation over long periods
- Super durable power output, delivering bright, clean, and detailed sound
- Easily compatible with digital processors, karaoke speakers, hall speakers, and stage speakers
Features
- Active PFC control, supporting a wide voltage adaptation range of 90VAC-260VAC
- Protect: Power supply undervoltage protection; Output DC protection; Overheating protection; Temperature and power control; Overload protection
- AC protection: when the voltage of the AC power supply exceeds the operating range, turn off the power supply
- Clipping limiter: prevents severely clipped waveforms from reaching the speaker while still maintaining full peak power output
- Very high frequency protection prevents the inaudible strong non-musical high frequency signals from reaching the speakers
Specifications
| Channel number | 2 CH |
| 8Ω Output power/per channel | 1400W |
| 4Ω Output power/per channel | 2100W |
| 8Ω Bridged Power | 2700W |
| Vrms (THD=1%, 1KHz) | 105V |
| Sensitivity (1kHz) | 0.775/1/1.4V |
| THD+N (typical) | 0.07% |
| Stereo Isolation (20Hz ~ 1kHz, 8Ω) |
≥80dB |
| Frequecy Range (10%Prms, 8Ω, 20Hz ~ 20kHz) |
±0.5dB |
| Input Impedance | 20k Ω (balance) 10k Ω (unbalance) |
| Damping Factor (typical) (8Ω, 20Hz ~ 200Hz) |
300 |
| Signal Noise Ration (A-weighted, 20Hz ~ 20kHz |
≥95dB |
| Net Weight | 8.2Kg |
| Dimensions (WxHxD) | 483 x 88 x 350mm |
| Operating Voltage | AC 90~220V/50-60Hz |
