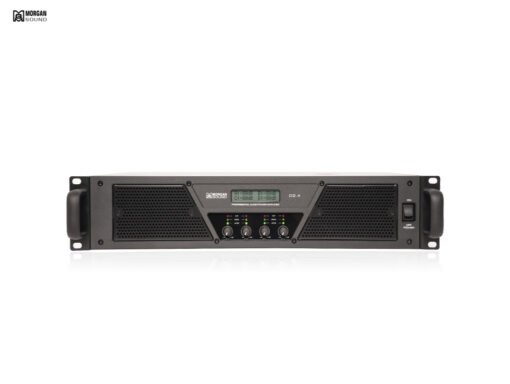

Power Amplifier MORGAN SOUND D2.4
- High power, high efficiency, and high-performance Class D amplifier circuit.
- High power, high-performance ring transformer, providing powerful power to the amplifier.
- 120A high current high-frequency MOS transistor output stage with lower output internal resistance.
- Can work stably for a long time at low impedance of 4Ω.
- The specially designed output circuit provides clearer, wider, and more delicate sound.
- The aluminum panel with wire drawing process is stable, beautiful, and durable, with a high-end and atmospheric appearance.
- Soft start upon startup, overload, overheating, short circuit, DC output, peak voltage limit, intelligent peak shaving protection.
The D2 Series Amplifiers: Transformer Version of the D3 Series!
- The D2 Series amplifiers are the transformer version of the D3 Series, which have the characteristics of high power, high performance, and high stability. Applied in churches, audio rooms, outdoors, and theaters.
- Patented technology that can operate normally at AC voltage of 100-265V.
- LCD display screen shows parameters such as volume and temperature.
Specifications:
| Channel number | 4 CH |
| 8Ω Output power/per channel | 1300W |
| 4Ω Output power/per channel | 1900W |
| 2Ω Output power/per channel | 2500W |
| 8Ω Bridged Power | 3500W |
| 4Ω Bridged Power | 3800W |
| Frequecy Response | 20Hz-20KHz |
| Total harmonic distortion | <0.03% |
| Slew Rate | 40V/μs |
| Damping Coefficient (100Hz) | >800:1 |
| Signal Noise Ration | 105dB(A) |
| Channel Separation | >65dB |
| Net Weight | 20Kg |
| Packing Dimensions | 580 x 520 x 185mm |
| Operating Voltage | AC 110-220V/50-60Hz |
