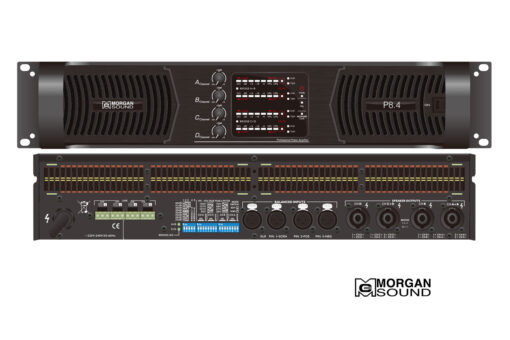

Power Amplifier MORGAN SOUND P8.4

High stability of  switching power amplifier.

The aluminum pinnate heat sink, match up with excellent and direct cooling design of  short heat conduction, supplying better cooling effect.

Use big power fans, start with high speed of dedusting function, stepless speed changes cooling control circuit.

Intelligent volt limit circuit, output of amplifier would not clip in the circumstance of overload.

Protection Function: soft start, overload, overheat, short-circuit, DC output,voltage peak limit, intelligent clip protection, output zero current switch.

Industrialized production, adopt our equipments: SMT machine, auto insertion machine, wave soldering machine. Programmable screw machine, etc; high consistency of production.

The line diameter transformer, match up with bulky filter capacitors, supplying strong power output, extremely high damping factor.

Follow-up DC-DC converter amplifier.

Small bulk, big power density.

Channel number	4 CH
8Ω Output power/per channel	1500W
4Ω Output power/per channel	2500W
2Ω Output power/per channel	3000W
8Ω Bridged Power	5000W
4Ω Bridged Power	6000W
Frequecy Response	20Hz-20KHz
Total harmonic distortion	<0.01%
Input Sensitivity	<1.4V
Slew Rate	40V/μs
Damping Coefficient (100Hz)	>1000:1
Signal Noise Ration	105dB(A)
Channel Separation	>65dB
Net Weight	17.5Kg
Packing Dimensions	550 x 575 x 185mm
Operating Voltage	AC 180-220V/50-60Hz
