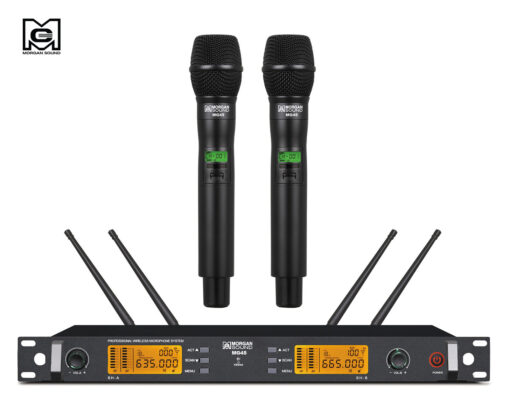

Microphone Morgan Sound MG45 Wireless Handheld Microphone System

Microphone Morgan Sound MG45

Microphone Morgan Sound MG45 – A Professional Audio Solution

Features of the Morgan Sound MG45:

• Wide UHF Frequency Range: Operates within 600-900MHz, offering 200 selectable channels for flexible use.
• User-Friendly Operation: Simple and convenient controls ensure ease of use.
• Advanced Digital Technology: Utilizes digital PLL (Phase-Locked Loop) for high stability and wide frequency response.
• Enhanced Display: Equipped with an LCD screen and MCU intelligent control for better system monitoring, noise blocking, and improved sound quality.
• Dual Sound Effects: Compress and expand functions deliver higher signal-to-noise (S/N) ratio and larger dynamic range.
• Advanced Noise Reduction: Multiple squelch control circuits minimize external interference.
• Exceptional Design: Unique build with powerful dynamics and an extensive frequency response range.

System Specifications – Morgan Sound MG45:

• Frequency Range: UHF 600-900MHz
• Oscillation Mode: PLL
• Adjustable Range: 50MHz
• Channels: 2×100
• Frequency Interval: 250KHz
• Frequency Stability: ±0.005%
• Dynamic Range: 100dB
• Maximum Frequency Deviation: ±45KHz
• Frequency Response: 80Hz-180KHz ±3dB
• Signal-to-Noise Ratio (S/N): >105dB
• Total Harmonic Distortion (T.H.D): ≤0.5%

Receiver Specifications:

• Receiver Mode: Double conversion superheterodyne
• Intermediate Frequency:
  • First: 110MHz
  • Second: 10.7MHz
• Wireless Interface: BNC/50Ω
• Sensitivity: 12dBuV (80dB S/N)
• Sensitivity Adjustable Range: 12-32dBμV
• Spur Suppression: ≥75dB
• Maximum Output Level: +10dBV

Transmitter Specifications:

• Antenna Mode:
  • Backpack transmitter equipped with a 1/4 wave whip antenna
  • Handheld microphone with a built-in helical antenna
• Output Power:
  • High: 30mW
  • Low: 3mW
• Spur Suppression: -60dB
• Power Supply: 2×1.5V AA batteries
• Battery Life:
  • High Power (30mW): <5 hours
  • Low Power (2mW): <7.5 hours

The Morgan Sound MG45 is your go-to microphone for professional-quality audio. With its advanced features, versatile system specifications, and durable design, it’s perfect for any event or performance. Experience unparalleled sound clarity and stability with the MG45 today!
