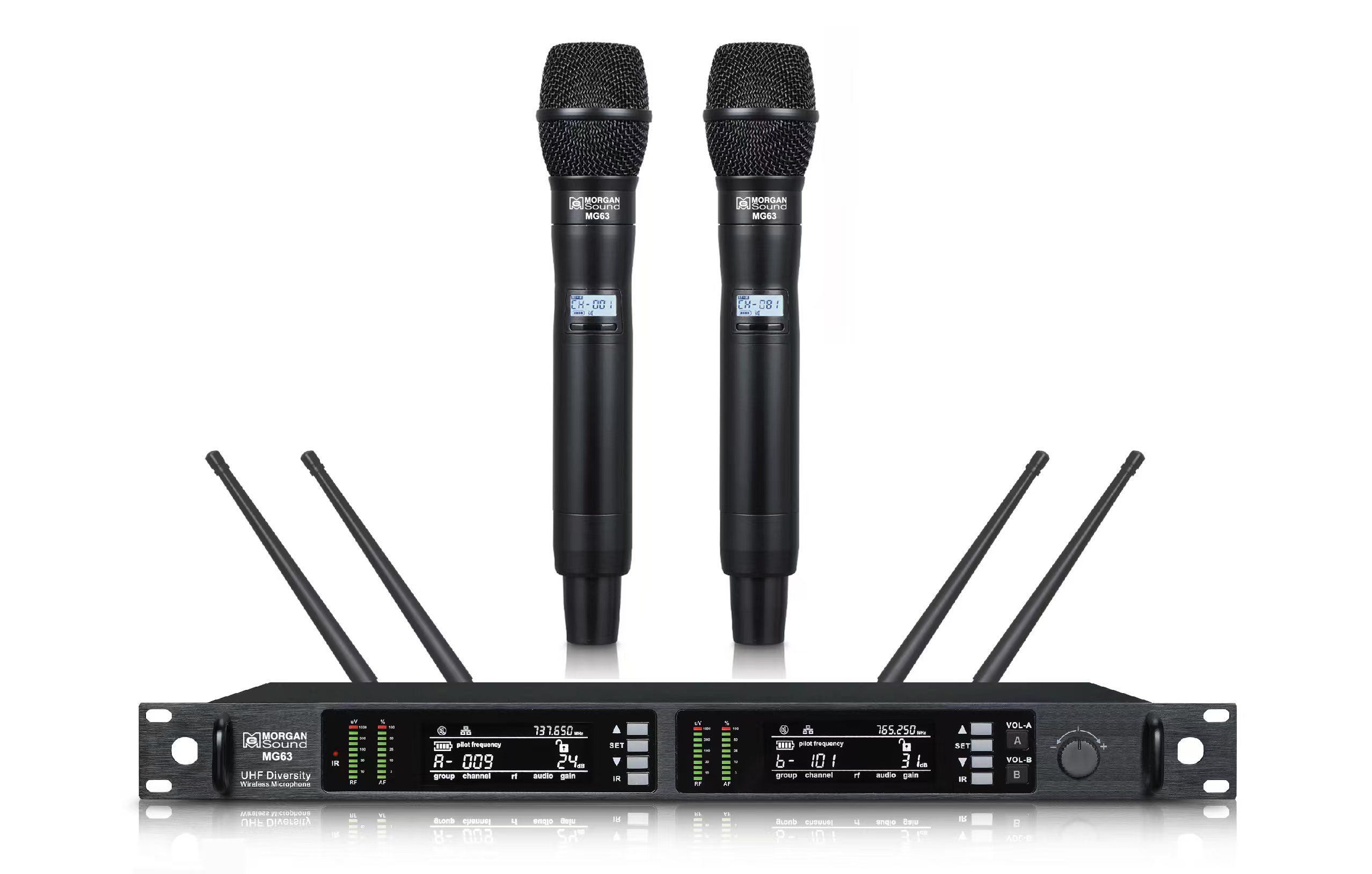

Microphone Wireless Morgan Sound MG63 True Diversity

MORGAN SOUND MG63 is a professional microphone designed for long-distance transmission and high-quality sound in demanding environments. Featuring a true diversity design and a built-in antenna amplifier, the MG63 offers outstanding interference resistance and stable signal reception. Intelligent audio compression technology and automatic frequency locking ensure clear and dynamic vocal performance. The LCD screen displays real-time status, with a maximum operating range of up to 150 meters and adjustable power settings for various applications.

1. Frequency range: UHF 540-590MHz

2. Modulation: Broadband FM

3. Adjustable range: 50MHz

4. Number of channels: 2×100

5. Channel spacing: 250KHz

6. Frequency stability: ± 0.005% or less

7. Dynamic range: 100dB

8. The biggest deviation: ± 45KHz

9. Audio Response: 80Hz-18KHz (± 3dB)

10. Integrated signal to noise ratio:> 105dB

11. Comprehensive distortion: ≤ 0.5%

12. Operating temperature: -10 ℃ ~ 50 ℃

1. Receiver mode: the second frequency superheterodyne

2. IF frequency: the first IF: 110MHz, the second IF 10.7MHz

3. Wireless interface: BNC / 50

4. Sensitivity: 12dBμV (80dBS / N)

5. Sensitivity range: 12-32dBμV

6.Spurious suppression: ≥ 75dB

7. Maximum output level: + 10dBV

1. Antenna program: Pocket transmitter with a 1/4-wavelength whip antenna, hand-held microphone built-in spiral antenna

2. Output power: high frequency 30Mw, low frequency 3Mw

3. Spurious suppression: -60dB

4. Power supply: two AA DC 1.5V battery 5. Operating time: more than 10 hours at 30mW, more than 15 hours at 3mW
