Line Array MORGAN SOUND M-RAY MZ210 – Dual 10-Inch Line Array Speaker

Line Array MORGAN SOUND M-RAY MZ210 – High-Performance Dual 10-inch Line Array Speaker

MORGAN SOUND M-RAY MZ210 and M-SUB MZ18 Line Array speaker system collaborates with AFMG from Germany. It assists in simulating sound to create 3D models, flexibly identifying the audience area and listener positions. With EASE Focus 3, system designers can simulate the sound performance of the complete audio system. EASE Focus 3 is free software intended for end users.

Looking for a high-performance, compact, and versatile audio system? The Dual 10-Inch Line Array Speaker is designed to deliver exceptional sound quality for a wide range of applications, from touring performances to theaters, multi-function halls, and churches. In this article, we’ll dive into its standout features, technical specifications, and why it’s the perfect choice for your audio needs. The MORGAN SOUND M-RAY MZ210 Line Array is designed to be paired with the M-SUB MZ18 speaker.

The Ultimate Line Array Solution for Professional Audio Applications

Unmatched Sound Clarity for Touring, Events, and Fixed Installations

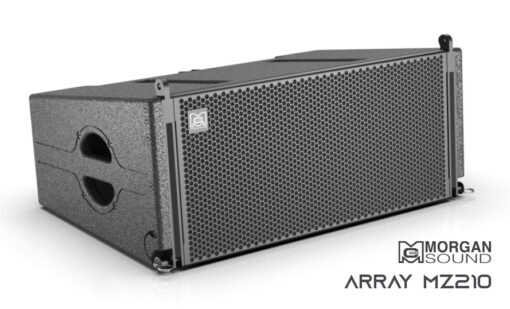

The MORGAN SOUND MZ210 is a dual 10-inch full-range line array speaker engineered for touring performances, large-scale events, and professional installations. Designed to deliver exceptional audio clarity, it is perfect for theatres, multi-function halls, and houses of worship, ensuring a powerful and immersive listening experience.

Key Features MORGAN SOUND M-RAY MZ210

 Superior Full-Range Audio – Optimized frequency response from 50 Hz to 16 kHz, providing rich lows and crystal-clear highs.

 Precision Coverage – Wide 100° horizontal dispersion, ensuring uniform sound distribution.

 High SPL Output – Capable of reaching 138 dB SPL peak, making it ideal for demanding environments.

 Versatile Installation Options – Adjustable rigging angles (0° to 10°) for ground stack or flown configurations.

 Compact & Durable Design – Lightweight Baltic birch plywood construction with black Polyurea finish for long-lasting performance.

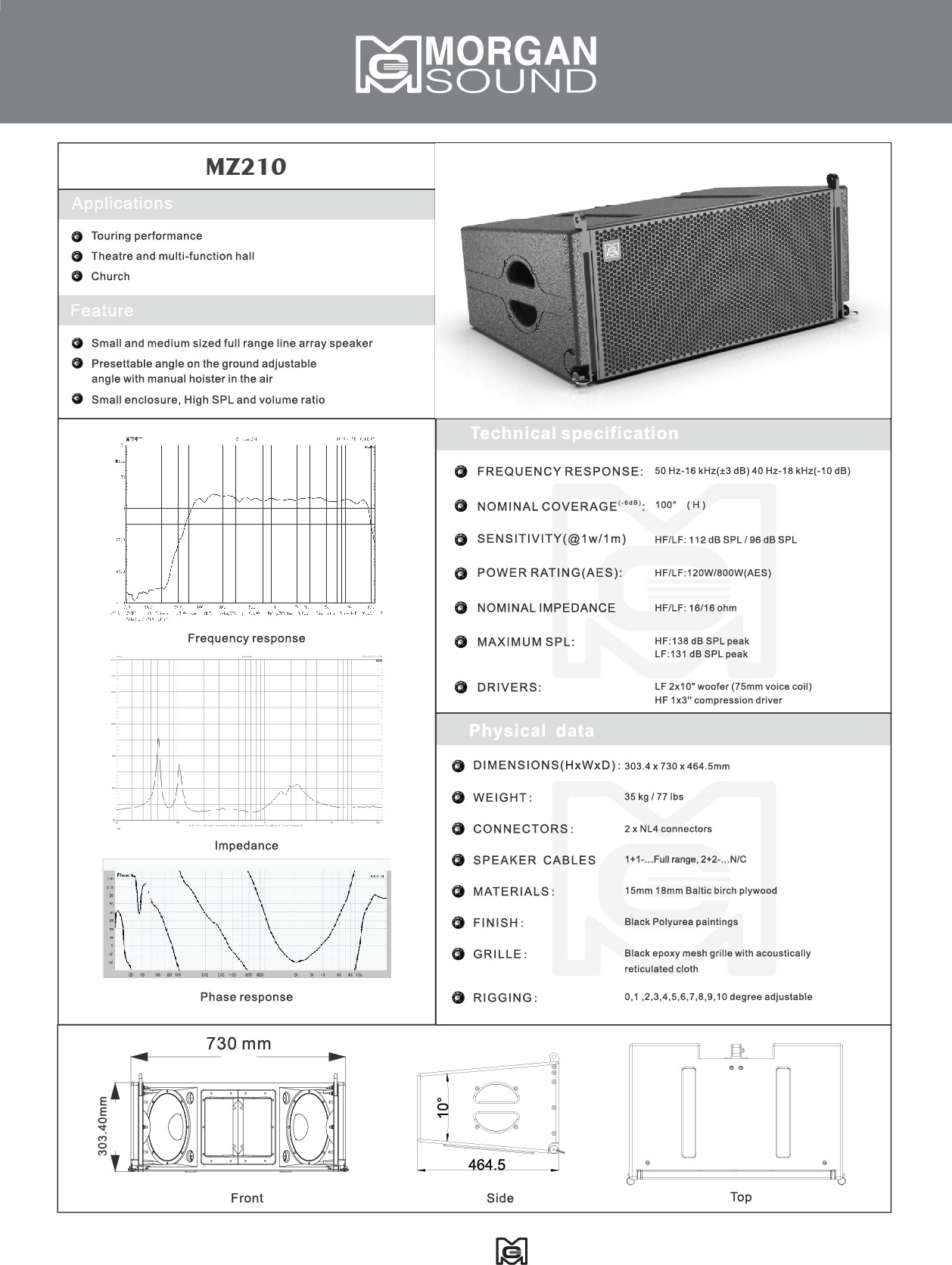

Technical Specifications MORGAN SOUND M-RAY MZ210

✅ Frequency Response: 50 Hz – 16 kHz (±3 dB), 40 Hz – 18 kHz (-10 dB)

✅  Nominal Coverage (-6 dB): 100° (Horizontal)

✅  Sensitivity (@1W/1m): HF/LF: 112 dB SPL / 96 dB SPL

✅  Peak Power Handling: HF/LF: 480W / 3200W

✅  Maximum SPL: HF: 138 dB SPL peak | LF: 131 dB SPL peak

✅ Drivers: LF: 2×10″ woofers (75mm voice coil) | HF: 1×3″ compression driver

✅ Impedance: HF/LF: 16Ω

Physical & Connectivity

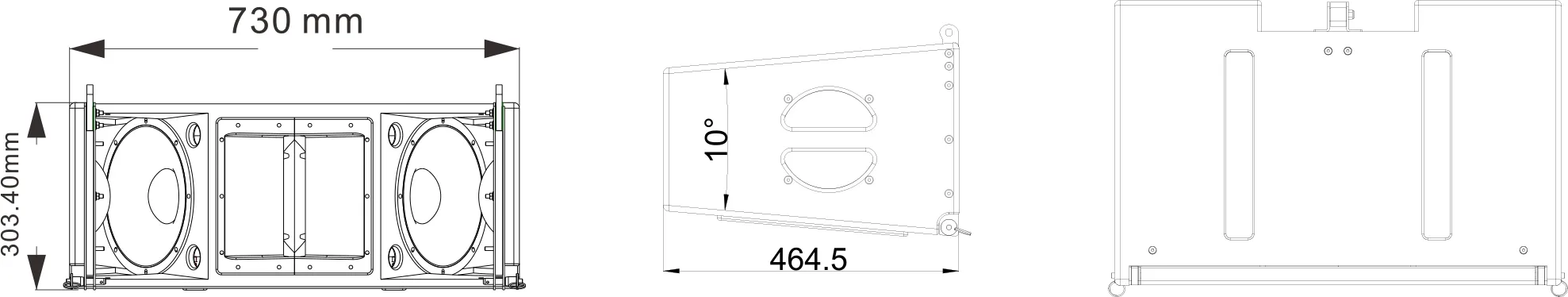

✅  Dimensions (HxWxD): 303.4 x 730 x 464.5 mm | 11.9″ x 28.7″ x 18.3″

✅  Weight: 35 kg | 77 lbs

✅  Connectors: 2 x NL4

✅  Speaker Wiring: 1+1- (Full range), 2+2- (N/C)

✅  Enclosure Material: 15mm & 18mm Baltic birch plywood

✅ Finish: Black Polyurea coating for maximum durability

✅ Grille: Black epoxy mesh with acoustically transparent cloth

✅  Rigging Options: Adjustable angles (0° to 10°)

Why Choose the MORGAN SOUND MZ210?

✅  Premium Sound Performance – Designed for high-end concerts, events, and installations

✅  Flexible & Easy Deployment – Presettable angle adjustments for optimized coverage

✅  Built for Durability – High-quality materials for road-ready reliability

The MORGAN SOUND MZ210 is the perfect choice for sound engineers and event organizers who demand powerful, clear, and professional-grade audio performance.
