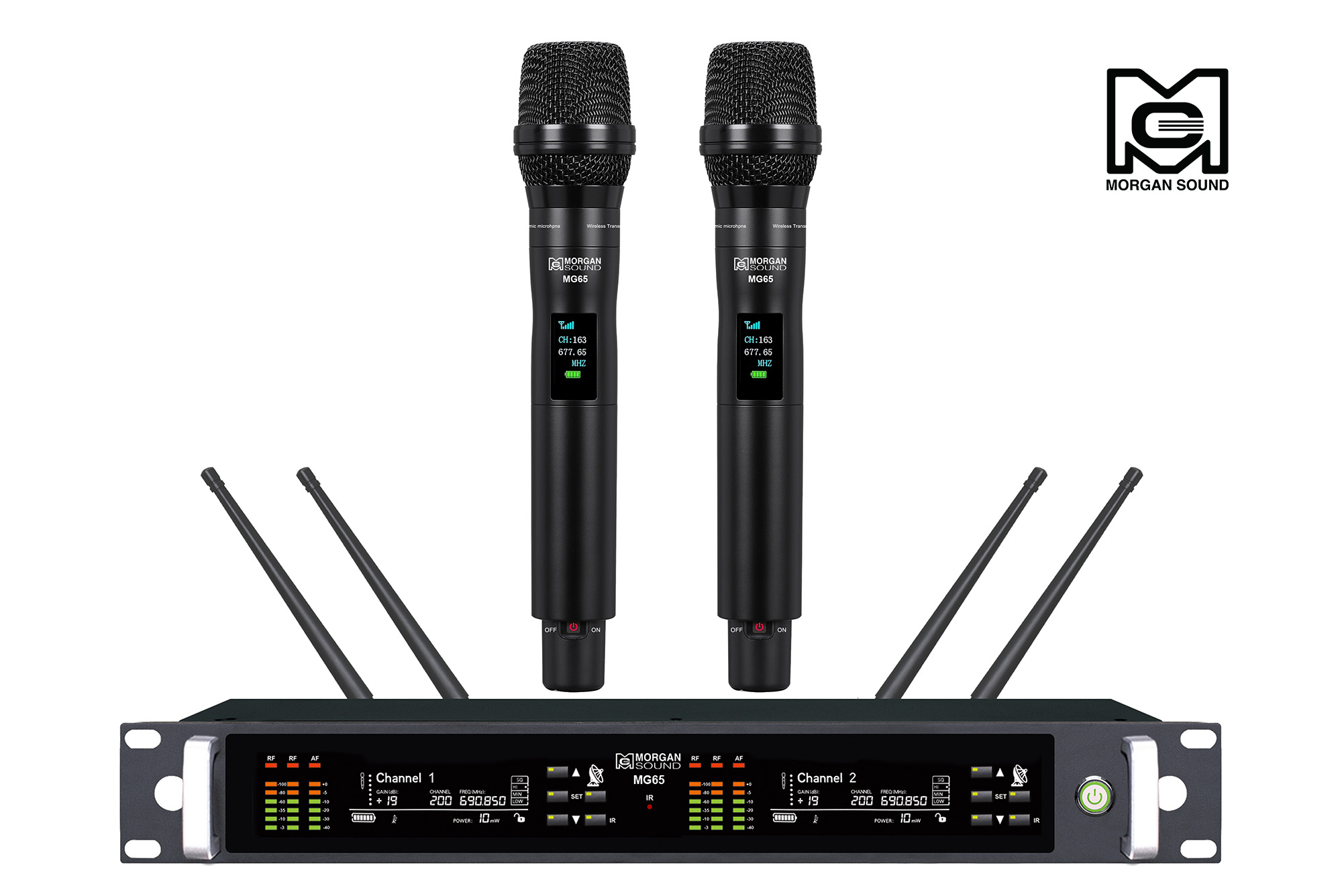

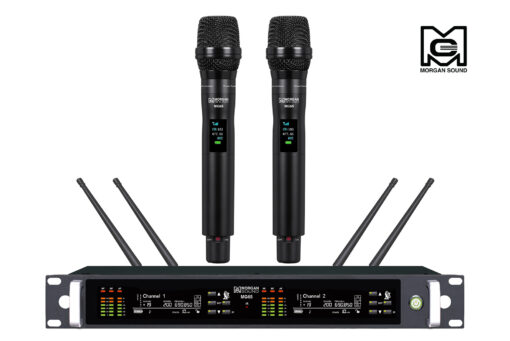

Microphone Morgan Sound MG65. Dual Channel Wideband True Diversity System

System indicators Morgan Sound MG65:

1. Frequency range: UHF 520-930MHz

2. Modulation method: wideband FM

3. Adjustable range: 50MHz

4. Number of channels: 2×100

5. Channel spacing: 250KHz

6. Frequency stability: within ±0.005%

7. Dynamic range: 100dB

8. Maximum frequency deviation: ±45KHz

9. Audio response: 80Hz-18KHz (±3dB)

10. Comprehensive signal-to-noise ratio: >105dB

11. Comprehensive distortion: ≤0.5%

12. Working temperature: -10℃ ~ 50℃

1. Receiver mode: secondary frequency conversion superheterodyne

2. IF frequency: first IF: 110MHz, second IF 10.7MHz

3. Wireless interface: BNC/50

4. Sensitivity: 12dBµV (80dBS/N)

5. Sensitivity range: 12-32dBµV

6. Spurious suppression: ≥75dB

7. Maximum output level: +10dBV

1. Antenna wire type: The bodypack transmitter uses a 1/4 wavelength whip antenna, and the handheld microphone has a built-in helical antenna.

2. Output power: high frequency 30Mw, low frequency 3Mw

3. Spurious suppression: -60dB

4. Power supply: two AA DC 1.5V batteries 5. Use time: more than 10 hours at 30mW, more than 15 hours at 3mW
