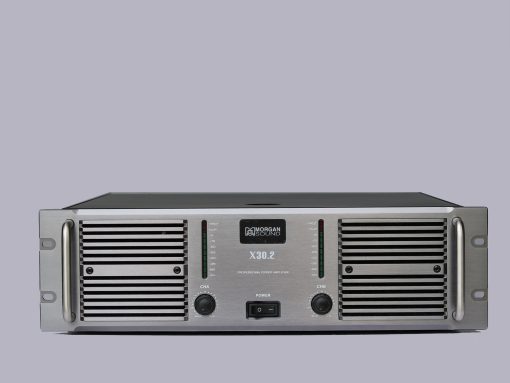

Morgan Sound X30.2 Supper Power Amplifier – Ultimate Match for Subwoofer 218 & 221

When you’re looking for a high-power amplifier for subwoofers, the Morgan Sound X30.2 delivers uncompromising performance. Engineered specifically for professional audio systems, this amplifier is the perfect match for high-performance subwoofers like the Subwoofer 218 and Subwoofer 221. Whether you’re powering a concert stage, nightclub, or large-scale event, the X30.2 provides exceptional bass control, output, and durability.

🎯 Why the Morgan Sound X30.2 is Ideal for Subwoofer 218 & 221

The Morgan Sound X30.2 is a Class TD amplifier designed for maximum power, efficiency, and sonic precision. It delivers up to 2500W per channel at 8Ω, and a massive 9000W in bridge mode at 4Ω, making it a powerhouse for driving subwoofers in the most demanding environments.

🔌 Power Output Specifications

Mode	8Ω Stereo	4Ω Stereo	2Ω Stereo	8Ω Bridge	4Ω Bridge
X30.2 Output	3000W x2	5000W x2	6000W x2	9000W x1	10000W x1

Subwoofer models like the 218 and 221—often dual 18″ or 21″ drivers—require a high-output amplifier that not only meets but exceeds their RMS ratings, especially for dynamic headroom. The X30.2’s 5200W at 2Ω stereo or 9000W bridge mode provides more than enough power for deep, distortion-free bass.

⚙️ Top Features of the Morgan Sound X30.2 Amplifier

✅ 1. Precision Audio Performance

Frequency Response: 20Hz – 20kHz (-1dB)
Ideal for Sub-Bass: Covers the critical subwoofer range (20Hz – 200Hz)
Damping Factor: >700 at 1kHz (8Ω) for tight cone control and punchy low end

✅ 2. Class TD Efficiency & Fast Transients

4th Gen Class TD Technology: Up to 80% efficiency
High-Speed MOSFETs: Ensures accurate reproduction of bass transients

✅ 3. Advanced Protection & Reliability

Built-in Soft-Start, Short-Circuit Protection, and Smart Overhead Management (SOM)
Wide Voltage Range: Operates reliably from 180V to 250VAC

✅ 4. Superior Cooling System

Front-to-Back Airflow with SUNON Maglev Fans (rated 50,000+ hours)
FEA-Optimized Radial Heat Sink: Exceptional thermal performance for high-load operation

🔊 Perfect Pairing with Subwoofer 218 and 221

These subwoofers are typically rated between 1000W and 2000W RMS, with 4Ω or 8Ω impedance, making them ideal candidates for the X30.2.

Stereo Mode: Run each subwoofer separately at 3000W (8Ω) or 5000W (4Ω)
Bridge Mode: Combine both for an incredible 9000W (8Ω) or 10.000W (4Ω) output

The built-in TrueRMS VCA limiter and Ultra Low Noise architecture ensure clean, undistorted sound even at peak output.

🎛️ More Professional Features You’ll Appreciate

🔹 Premium Preamp & Power Supply

PureSound Circuit with audiophile-grade capacitors for clean signal path
Linear Power Supply using 105°C long-life capacitors ensures years of reliability

🔹 Connectivity & Flexibility

Neutrik XLR Inputs/Links, Speakon NL4 Outputs for professional-grade connections
Selectable Modes: Stereo / Parallel / Bridge for all setup types
Gain Sensitivity Switch: Choose from 0.775V / 1.4V / 32dB to match your mixer or DSP

🔹 Built to Perform

Size: 3U rackmount, 462mm depth
Weight: 45.5kg net
Tour-Ready or Installation-Ready: Ideal for live events or permanent installations

🔧 How to Maximize Performance with the X30.2 and Subwoofer 218/221

✔️ Match Impedance: Ensure your subwoofers are wired to match 4Ω or 8Ω loads
✔️ Set Input Sensitivity: Use the selector switch to match your signal source
✔️ Correct Wiring:
- SPK1: 1+ = CH A / 2+ = CH B
- SPK2: 1+ = CH B / 2+ = Not used
✔️ Gain Control: Maintain amplifier output within 1.5x to 2x RMS of the subwoofer to prevent overload
