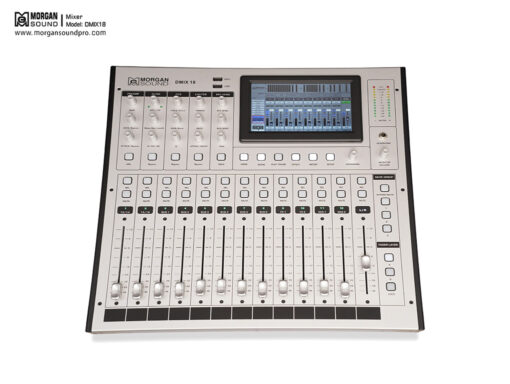

Mixer Digital MORGAN Sound DMIX18

Professional interface

MORGAN DMIX18 digital mixing console effectively integrates the digital mixing system with innovative design and powerful DSP functions, bringing users a very professional functional experience.
Whether you are upgrading or replacing an analog mixer to a digital mixer, MORGAN DMIX18 will be one of your best choices.

Preamplifier​

Among the 16 analog inputs, there are 14 digital gain microphone preamp channels, smooth 1dB step gain adjustment, signals pass through a high-performance, low-latency 24- bit analog-to-digital converter, minimal distortion and ultra-low background noise, and multi-function parameters are adjustable; the good consistency brought by digital gain can effectively prevent misoperation; these are unmatched by analog mixing consoles.

Mixing Speed​

With powerful processing capabilities and advanced functions, you can quickly call up the mixing interface and make adjustments in a timely manner. Once you start using MORGAN DMIX18 , you can feel the convenience and speed brought by our design of the software operation process. The convenient and fast operation experience allows everyone to enjoy the convenience and powerful functions of the digital mixer.

Touch Control

The operation panel of MORGAN DMIX18 is composed of a 1024×600 true color resistive touch screen, a digital encoder and dedicated buttons , which can quickly and conveniently perform all settings; the friendly software interface and clear navigation design allow you to understand the operation even without referring to the manual, and the dedicated buttons and screen navigation buttons quickly guide you to various functional modules; such as level meter, PEQ , Limiter , USB recording and playback, scene storage, system settings, etc.

Chinese and English operation interface – simplifying the complex

In today’s era of information explosion, instruction manuals have become a thing of the past. With the emergence of English-Chinese interfaces, you can completely ignore the instruction manual and quickly get started. This reduces the operator’s knowledge of professional terminology for mixing consoles and also lowers the threshold for hiring personnel in application units.

13 100mm electric faders

As a standard configuration of digital mixing consoles, MORGAN DMIX18 can instantly control all channels and main outputs in a compact space: 1 LR main channel fader, 12 channel faders and 2 fader layers, which can achieve convenient and fast switching.

2 built-in effects

For singing and performing, the built-in effects can simplify system wiring; the device comes with effect modules such as classic reverb and large room reverb; FX sound effects can be returned to the mix using a dedicated return channel without occupying mono and stereo input channels.

100 scene storage

Scene storage is one of the most practical and significant functions that distinguishes it from analog mixing consoles. MORGAN DMIX18 can store 100 complete scenes, and all scenes can be exported to external storage devices for storage backup so that they can be called up in time later.

PEQ Scenario

PEQ scene storage is used to store the mode of a single input channel. The best state you adjust before a performance can be stored in the system and can be called up on any input channel; for example, the adjustment of singers and instruments before a performance.

USB playback and recording

MORGAN DMIX18 can recognize Chinese and English song titles in USB electronic disks, and has functions such as fast forward, next song, quick pause, etc., which is very convenient for on-site operation; and supports the playback of APE , FLAC , MP3 , and WAV lossless audio formats.

ARM processor + Linux system

Samsung 4418 quad-core 1.4G high-performance ARM processor can easily drive the touch screen display and interface, USB playback and recording, and quickly start in 22 seconds; the Linux system is stable and efficient, and is virus-free, giving it better security.

Features

■ 7- inch resistive touch screen with 1024×600 resolution

■ 13 100mm electric faders

■ Switch between Chinese and English interfaces at any time without restarting

■ Built-in USB recording and playback function

■ Can play APE , FLAC , MP3 , WAV lossless audio formats

■ USB player can recognize Chinese song titles

■ Built-in 16 -channel independent feedback suppressor

■ Integrated Speaker Manager

■ Open third-party control protocol TCP/IP , RS-232 control instructions

■ With 2 DCA​

■ iPad touch screen full-function control, real-time data synchronization

■ Optional WIFI hotspot ■ Support 8 terminals to control at the same time

■ Built-in 2 effect modules

■ ARM firmware and DSP firmware can be upgraded via the network or USB electronic disk

■ Each input channel has 4 -band parameter equalization, noise gate, feedback suppressor, high and low pass, compression, and phase inversion

■ Each output channel has 8 -band parameter equalization, high and low pass, compression, inversion, 1.8 seconds delay

■ Output channels L/R , 6BUS , 2AUX , HeadPhone (L/R)

■ 6 BUS , 2 AUX mixing buses can be selected before the fader, after the fader ( PRE/POST )

■ Supports 100 sets of scene presets, can be exported and imported into USB storage for easy data backup

■ 100 PEQ mode storage

■ Built-in signal generator: sine wave, pink noise, white noise

■ Channel parameter copy function, quickly copy data on the same channel

■ Wiring method: Balanced input, XLR output

■ 8 fader groups, 1 system mute button, 3 quick mute buttons

■ With panel lock button (to prevent accidental operation)

■ Channel name can be customized

Name	DMIX18
Display size	7
Resolution	1024×600
Touch	resistance
Main CPU	Samsung 4418 Quad -core Cortex™-A9
Boot speed	22 seconds
operating system	Linux
DSP	ADSP-21489 400Mhz
Analog Input	16CH (14MIC + 2Line)
Digital Input	S/P DIF , optical fiber
Digital Output	AES EBU
USB	Recording playback Playback formats: APE , FLAC , MP3 , WAV
Analog Output	L/R+6BUS+2AUX+Headphone(L/R)
Noise Floor	-89dBu unauthorized ( AP 515 test)
Distortion	0.0045% @4dBu 20 ～20Khz
Signal-to-Noise Ratio	-108dB No Memory
Dynamic Range	108dB
Frequency response	20Hz – 20KHz ±0.5dB
Maximum input and output level	18dBu   ( 6.2Vrms ) balanced
DCA	have
Chinese and English interface	have
Electric hair clippers	13
iPad control	have
Effects	2 effects
Feedback Suppressor	16 independent
Speaker Manager	have
Ethernet	100M
RS-232 Protocol	have
WIFI	150M (optional)
USB Mouse	support
Dimensions (W * D * H)	450x450x146mm
net weight	8kg
powered by	AC 100v-240v ; 50/60Hz   55W
