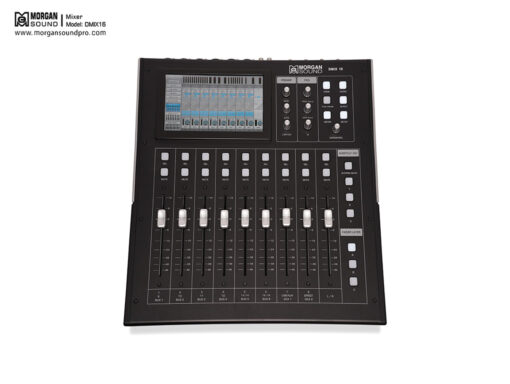

Mixer Digital MORGAN Sound DMIX16

9 100mm electric faders

1 built-in effects processor

100 scene storage

PEQ scene storage

USB playback: supports playback of APE, FLAC, MP3, WAV lossless audio formats

Support NTFS format large capacity USB flash drive

Recording function: only supports 2-track recording

Dual-core 1.2G processor + Linux system

■ 7-inch capacitive touch screen with 1024×600 resolution

■ Switch between Chinese and English interfaces at any time without restarting

■ Built-in 6~12 channels of independent feedback suppressor

■ With 2 DCA

■ iPad touch screen full-function control, real-time data synchronization

■ Optional WIFI hotspot

■ Support 8 terminals to control at the same time

■ ARM firmware and DSP firmware can be upgraded via the network or USB resistor disk

■ Each input channel has 4-band parameter equalization, noise gate, feedback suppressor, high and low pass, compression, and phase inversion

■ Each output channel has 8-band parameter equalization, high and low pass, compression, and phase inversion

■ Output channels L/R, 6BUS, 2AUX, HeadPhone (L/R)

■ 6 BUS, 2 AUX mixing buses can be selected before the fader, after the fader (PRE/POST)

■ Supports 2~100 groups of scene presets, can be exported and imported into USB storage for easy data backup

■ 32 PEQ mode storage

■ Built-in signal generator: sine wave, pink noise, white noise

■ Channel parameter copy function, quickly copy data on the same channel

■ Wiring method: balanced input, XLR output

■ Fader grouping, 1 system mute button, 3 custom buttons

■ Channel name can be customized

nameDigiMix X10

Display size7

Resolution1024x600

Touchresistance

Resolution1024x600

Main CPUDual core 1.2G

operating systemLinux

DSPADSP-21488 400Mhz

Analog Input10CH (6MIC + 4Line)

Analog OutputL/R+6BUS)

USB PlaybackPlayback formats: APE, FLAC, MP3, WAV

USB Recording2-track recording

Output noise floor-90dBu Unencrypted (AES17-20Khz)

Distortion0.006% @4dBu 20～20Khz

Maximum signal-to-noise ratio105dB No Memory

Dynamic Range105dB

Frequency response20Hz－20KHz ±0.5dB @0dBu

Maximum input level14dBu (3.88Vrms) balanced XLR input

Maximum output level18dBu (6.2Vrms) balanced XLR output

DCAhave

Chinese and English interfacehave

Electric hair clippers9

iPad controlhave

Effects1 effect

Feedback SuppressorMIC 1-6 channels

Output delaynone

Ethernet100M

RS-232 Protocolhave

TCP/IPhave

USB Mouse     support

Dimensions (W*D*H)358x380x125mm

powered byAC 100v-240v ; 50/60Hz 55W

net weight6.4KG

Gross Weight8.8KG

Package Size510x460x190mm

nameDigiMix X16

Display size7

Resolution1024x600

Touchresistance

Resolution1024x600

Main CPUDual core 1.2G

operating systemLinux

DSPADSP-21488 400Mhz

Analog Input16CH (12MIC + 4Line)

Analog OutputL/R+6BUS+2AUX+Headphone(L/R)

USB PlaybackPlayback formats: APE, FLAC, MP3, WAV

USB Recording2-track recording

Output noise floor-90dBu Unencrypted (AES17-20Khz)

Distortion0.006% @4dBu 20～20Khz

Maximum signal-to-noise ratio105dB No Memory

Dynamic Range105dB

Frequency response20Hz－20KHz ±0.5dB @0dBu

Maximum input level14dBu (3.88Vrms) balanced XLR input

Maximum output level18dBu (6.2Vrms) balanced XLR output

DCAhave

Chinese and English interfacehave

Electric hair clippers9

iPad controlhave

Effects1 effect

Feedback SuppressorMIC 1-12 channels

Output delaynone

Ethernet100M

RS-232 Protocolhave

TCP/IPhave

USB Mouse     support

Dimensions (W*D*H)358x380x125mm

powered byAC 100v-240v ; 50/60Hz 55W

net weight6.4KG

Gross Weight8.8KG

Package Size510x460x190mm
