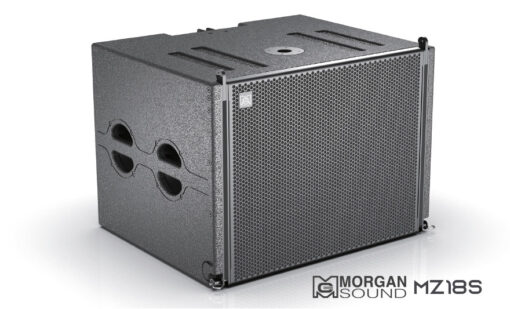

Subwoofer MORGAN SOUND M-SUB MZ18. Subwoofer paired with the M-RAY MZ210

Subwoofer Morgan Sound M-SUB MZ18 paired with Array Morgan sound MZ210: Powerful Audio for Live Events

Elevate your sound experience with the Morgan Sound MZ18S Subwoofer paired with the Line Array Moran Sound M-RAY MZ210. Designed for live performances, theatres, multi-function halls, and churches, this audio solution delivers exceptional bass and clarity. Whether you’re hosting a concert or enhancing a worship space, this system ensures top-tier sound quality.  The MZ18S subwoofer can be used to supplement MZ210 loudspeakers in various combinations, ground stacked or flown, either integrated on top of a MZ210 array or as a separate column
MORGAN SOUND M-RAY MZ210 and MZ18S Line Array speaker system collaborates with AFMG from Germany. It assists in simulating sound to create 3D models, flexibly identifying the audience area and listener positions. With EASE Focus 3, system designers can simulate the sound performance of the complete audio system. EASE Focus 3 is free software intended for end users.

Applications Subwoofer MORGAN SOUND M-SUB MZ18

• • Live Performances: Perfect for concerts and outdoor events needing robust bass.

• • Theatre & Multi-Function Halls: Enhances audio for plays, presentations, and more.

• • Churches: Provides clear, powerful sound for worship services.

Key Features MORGAN SOUND M-SUB MZ18

• • Complementary Design: Pairs seamlessly with the LA210 system for balanced audio.

• • Enhanced Acoustics: Vented, horn preposition design boosts sound performance.

• • Powerful Bass: Features a direct radiation 18-inch woofer with a 75mm voice coil.

• • Reduced Noise: Large inverting hole minimizes airflow distortion.

Technical Specifications MORGAN SOUND M-SUB MZ18

• • Frequency Response: 32 Hz – 180 Hz (±3 dB), 30 Hz – 250 Hz (-10 dB)

• • Nominal Coverage: Omnidirectional

• • Sensitivity: 99 dB SPL (@1W/1m)

• • Peak Power: 3200W

• • Nominal Impedance: 8 ohms

• • Maximum SPL: 135 dB (peak)

• • Driver: 1 x 18″ subwoofer (75mm voice coil)



Physical Data

• • Dimensions (HxWxD): 530 x 730 x 600 mm

• • Weight: 42 kg (93 lbs)

• • Connectors: 2 x NL4MP Neutrik Speakon

• • Speaker Cables: 1 + 1-

• • Materials: Durable 18mm and 24mm birch multi-plywood

• • Finish: Sleek black polyurea coating

• • Grille: Black epoxy mesh with acoustically reticulated foam

Why Choose Morgan Sound M-SUB MZ18 with M-RAY MZ210?

Built for professionals, this subwoofer and array combo offers unmatched power and precision. Its sturdy construction and advanced acoustics make it ideal for any venue requiring high-quality sound. Upgrade your audio setup today with Morgan Sound!
