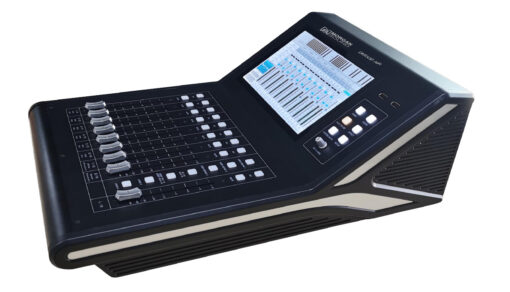

Mixer Digital MORGAN SOUND DMIX32 AIR

Mixer Digital MORGAN SOUND DMIX32 AIR New Version 2025

Professional Interface

This digital mixer integrates the digital tuning system effectively with innovative design and powerful DSP function, giving users a very professional functional experience.

An upgrade or replacement from an analog to a digital mixer is one of your best options.

Preamplifier

DMIX32 AIR Among the 16 analog inputs，there are 16 microphone amplifier channels with digital gain，smooth 0.1dB step gain adjustment，signal via high performance low latency 24-bit analog to digital converter ， minimal distortion and ultra-low background noise，more function parameter can be adjusted，which analog mixer cannot reach. Like digital gain brings good consistency, as well as effective protection against misoperation.

Mixing Speed

With powerful processing power and advanced features, you still need to quickly turn up the mixing interface and make timely adjustments.

You can feel the convenience and quickness of our software operating process. Convenient and quick operating experience make everyone enjoy the convenience and powerful function of digital mixer.

AES67 Internet Audio（Optional）

Additional 16×8 audio channels can be expanded through the optional AES67 interface card +AES67 network audio interface box.

16 input channels support 48V, NC analog gain.

Eight AES67 network audio outputs can be flexibly configured through the route management interface.

13.25 Inches Resistive Touching Control

Operating panel consists of 1280×800 resistive touching screen and specific buttons, digital encoder，which can help you quickly and conveniently make all settings. Friendly software interface, clear navigating design, which can help you understand operating process without reading instruction. Specific button and screen navigating button can help you lead to all the functional modules. Like electric level meter, PEQ, Limiter, USB recording and playing, scene storage, system setting, etc.

Chinese and English Operating Interface– Simplify

Information explosion age, instruction is a thing of past, the Chinese and English interface appear，which make you ignore the instruction completely and directly operate this digital mixer. Lowing the users’ requests for a foreign language as well as the threshold of hiring employees for the companies.

9 100 mm Electric Fader

Electric fader is the standard component of digital mixer，real-time control of all channels and main outputs in a compact space，1 LR main sound channel fader，8 channel fader，4 fader layers，which make you conveniently and quickly switch and check the volume status.

2 Built-in Effector Bus

For singing and performance fields, the built-in effector can simplify the system wiring, with 2 classic reverberation effect modules. FX sounds can be returned to the mix using a dedicated return channel that does not occupy the mono and stereo input channels.

2 External Effector Bus

2 external effector bus can output the audio of digital mixer，transported to

windows PC，using windows effector calculating resources in the operating system, back to the digital mixer.

100 Scene Storage

Scene storage is one of the most practical and meaningful functions to differentiate digital mixer from analog mixer ， which can storage 100 complete scenes and can be adjusted when needed. All the scenes can be output to USB storage equipment and computer for backup.

PEQ Scene

PEQ scene storage used in one single input channel module storage. Your best adjusting status before performance can be stored in the system. You can use the PEQ scene in any channels. Like the test of singer or instruments before performance.

USB Playing and Recording

The digital mixer can play the English and Chinese songs in the USB disk. With fast forward, the next song and quick pause function, it is very convenient for the operation at the scene.

ARM Processor+Linux System

High performance ARM processor ， easily drive touch screen display and interface, USB playing and recording，15 seconds quick start-up. Linux system is stable and high-effected，fearless of disease, which has better safety.

ASIO Low Latency USB Sound Card

This digital mixer supports 2✖2 track low latency ASIO sound card，used in transporting audio signal with windows system.

Used in the usage of recording and the third-party effector.

OTG Phone Sound Card

This digital mixer supports 2✖2 OTG sound card，used in Android phone, Huawei HarmonyOS system transporting audio signal.

It is used for anchor recording, playback and live broadcast.

Function Introduction Mixer MORGAN SOUND DMIX32 AIR

■ 13.25 inches resistive touching screen 1280×800 resolution ratio.

■ an extended AES67 network audio interface box is optional.

■ 9 100mm electric fader.

■ English and Chinese interface switched at any time without restarting.

■ built-in USB recording and playing function.

■ USB player can recognize Chinese songs.

■ built-in 24 channel independent feedback suppressor.

■ integrated speaker manager.

■ open third-party control protocols TCP/IP and RS-232 control instructions.

■ 8 DCA groups.

■ iPad touching screen all-functional control, real-time data synchronization.

■ Supports simultaneous control of multiple terminals.

■ built-in one effector module.

■ upgrade firmware through internet or USB electric hard disk.

■ input channel has 4-phase parametric EQ, noise gate, feedback suppressor, high-pass filter and low-pass filter, compressor, reverse.

■ output channel has 8-phase parametric EQ, high-pass filter and low-pass filter compressor, reverse.

■ BUS or AUX mixing bus can choose PRE fader or POST fader.（PRE/POST）

■ support 100 group scene presetting function, which can be output and input from USB memory or computer for easy data backup.

■ 100 PEQ module storage.

■ 100 scene global parameter storage.

■ built-in signal generator：sine wave, pink noise, white noise.

■ channel parameter copy function, same channel copy data quickly.

■ wiring way：balanced input, output canonet.

■ 8 fader groups, 8 mute groups.

■ channel name can be customized.

Performance Index MORGAN SOUND DMIX32 AIR

performance	index
Analog input	16CH ( MIC/Line )
Analog output	8CH balanced output
Internet audio input Internet audio output	16CH ( MIC/Line ) （optional AES67 card，interface box）8CH balanced output （optional AES67 card，interface box）
Sound card	2×2 USB ASIO sound card（only support Windows10、11）2×2 OTG USB sound card （only support Huawei HarmonyOS system）
DSP	ADSP-21569 1Ghz
THD+N distortion	0.005% @4dBu 1Khz 0.01% @4dBu 20～20Khz
Background noise	-90dBu mo weighting AES17（20Khz）
SNR(signal noise ratio)	108dB no weighting
Dynamic range	108dB no weighting
Maximum input electric level	Balanced 20dBu
Maximum output electric level	Balanced 20dBu
Frequency response	20Hz－20KHz ±0.5dB
Screen size	13.25 inches or so
Resolution ratio	1280×800
Touching control	capacitance
Main control CPU	Samsung 4418 4-core Cortex™-A9
Operating system	Linux
DSP	ADSP-21569 1Ghz
USB	Recording playing ( playing format APE, FLAC, MP3, WAV )
DCA	8 DCA groups
English and Chinese interface	with
Electric fader	9 electric fader
Ipad control	with
effector	2 built-in effector bus（6 preset effect parameter, 24 user storage）2 external effector bus
Feedback suppressor	16 independents
Ethernet	With
RS-232 protocol	With
USB mouse	support wired USB mouse
Power supply	AC 100v-240v ; 47~63Hz 60W
size （width*depth*height）	371x545x205mm
Net weight	10.2kg
Package weight and size	13.2kg 640*480*312MM
