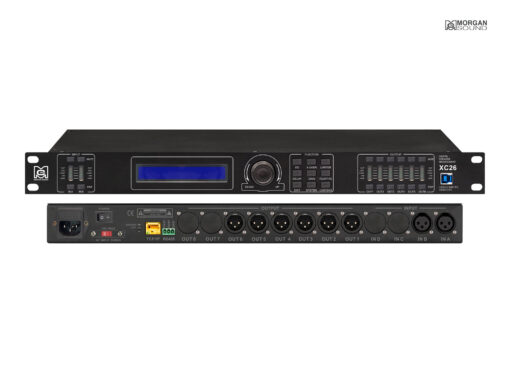

DSP MORGAN SOUND XC26 Digital Speaker Processor

DSP MORGAN SOUND XC26 2 input – 6 output Digital Speaker Processor

Key Features of the MORGAN SOUND XC48

• 2 balanced inputs and 6 balanced outputs on XLRs.
• XCA + Series offers superior audio quality with THD: <0.002% and SNR >108.8dB
• All channels can be configured using Parametric EQ, High/Low Shelf EQ, and 1st/2nd order All Pass filters.
• Fully adjustable crossover filters on all output channels, with slopes from 12dB to 48dB per octave.
• Linkwitz-Riley, Butterworth, or Bessel curves can be individually selected on the high-pass and low-pass.
• Each input has 2 dynamic EQs, noise gate, and adjustable compressor.
• Automatic Gain Control available on input channels.
• Configurable compressor and peak limiter on every output channel.
• Delay on all channels, adjustable in milliseconds, metres or feet.
• Full matrix mixing, route any input to any output.
• All input and output channels can be individually muted.
• Channels can be linked for convenience to allow editing of two or more channels at a time
• 32-bit digital signal processor with 24-bit 96KHz A/D and D/A converters.
• USB 2.0/3.0, RS485 connections are provided for PC control of multiple devices.
• Operation possible using the front panel controls or via dedicated Windows app.
• 30 user-program presets can be stored into the device and recalled, or backed-up to PC via USB.
• Password protection for partial or full lock of system settings.
• LED indicators on all input and output channels for level, mute, compressor, limiter, and peak/clip.
• 2×24 character dot-matrix blue back-lit LCD display.
• Gross weight: 5.25kg
• Shipping Dimensions: 562mm x 325mm x 98mm
• Power 110V /220V AC 50/60Hz <25W

SPECIFICATIONS MORGAN SOUND XC26

INTEGRATED DSP
Audio Latency: < 4.0ms
A/D and D/A Converters: 24-bit
Sample Rate: 96kHz

ANALOG AUDIO INPUTS AND OUTPUTS
Input Channels: 2 balanced, line level
Connectors: XLR
Input Impedance: 22kΩ
Maximum Input Level: 6dBu/Line
Output Channels: 6 balanced, line level
Output Impedance: 150Ω

AUDIO PERFORMANCE SPECIFICATIONS
Frequency Response: 20Hz–40kHz (±0.5dB)/Line
THD+N: -93dB (@ 16dBu, 1kHz, A-wtd)/Line
SNR: 109dB (@ 16dBu, 1kHz, A-wtd)/Line

COMMUNICATION PORTS AND INDICATORS
USB: Micro-B type, free driver
RS-232: Serial port communication
TCP/IP network port: RJ-45
LED Status Indicators: DLIP, LEVEL, EDIT, MUTE
Power: Socket with IEC Standard

ELECTRICAL AND PHYSICAL
Mains Voltage: AC110V – 220V, 50/60 Hz
Dimensions: 483 x 226 x 45 mm
Shipping Dimensions: 562mm x 325mm x 98mm
Net Weight: 3.2kg
Gross weight: 5.25kg
Operating Temperature: -20°C – 80°C
