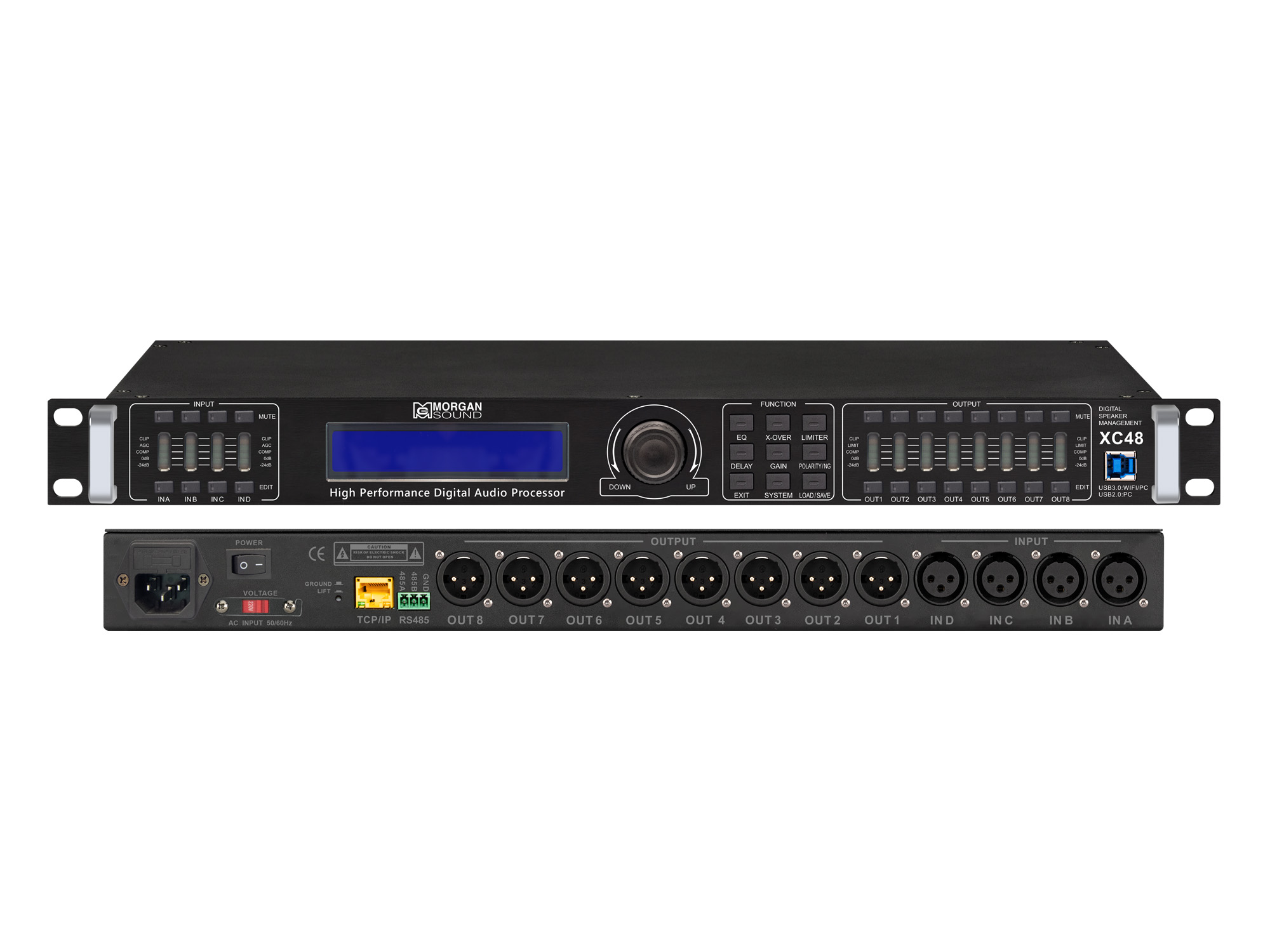

Digital Audio Processor MORGAN SOUND XC48 PRO
MORGAN SOUND XC48 PRO Digital Audio Processor
96kHz High Sampling Rate | 32-bit DSP | 32-bit ADC/DAC Conversion
Enhance your audio system with the MORGAN SOUND XC48 PRO, a professional-grade digital audio processor designed for exceptional sound quality and system flexibility. Featuring a 96kHz high sampling rate, 32-bit high-precision floating-point DSP, and 32-bit ADC/DAC chips, this unit ensures ultra-clear audio reproduction for both live and installed sound applications.
🔧 Key Features
-
✅ Flexible Input/Output Configurations:
Choose from 2-in/6-out, 3-in/6-out, or 4-in/8-out models, ideal for various sound reinforcement setups. Custom crossover settings allow high-pass and low-pass filtering from 19.7Hz to 20kHz, offering full control of your audio spectrum. -
✅ Multiple Connectivity Options:
Equipped with USB 2.0, USB 3.0, RS485, and TCP/IP ports for seamless integration with computers or central control systems. The RS485 interface supports cascading up to 250 devices with unique ID assignments for group control. -
✅ Dual Control Modes:
Operate the XC48 PRO via on-panel function keys and dials, or connect to a computer using the dedicated PC control software. The intuitive interface makes setup and adjustments easy—even in complex systems. -
✅ User Data Management:
Save up to 60 user-defined presets internally, and back up or restore data via external storage using the PC software. -
✅ Real-Time Display:
The 2×24 LCD with blue backlight shows all system settings, while 5-segment LED meters accurately reflect input/output levels, mute, and edit status at a glance.
🎚️ Advanced Audio Processing MORGAN SOUND XC48 PRO
-
🎛 Equalization (EQ):
Each input includes 12 bands, and each output has 15 bands of fully parametric EQ. Choose from Parametric, High-Shelf, Low-Shelf, 1st-order All-Pass, and 2nd-order All-Pass filters. Gain adjustment range is ±20dB with precise control. -
⏱ Delay & Phase Alignment:
Built-in delay up to 1000ms, adjustable in ms, meters, or feet, with coarse and fine tuning. Perfect for time-aligning speakers or adjusting system latency. -
🎼 Built-in Signal Generator:
Generate white noise, sine waves, pink noise, or frequency sweeps for quick testing and tuning, with adjustable frequency, duration, and level. -
🔇 Noise Gate & Dynamics Control:
Every input includes a noise gate, 2-band Dynamic EQ (DEQ), Auto Gain Control, and Compressor, all fully configurable and visually displayed in the control software. -
🔈 Output Compression & Limiting:
Protect your speakers with per-channel compression and limiters, complete with visual feedback in the software’s level monitoring interface.
🔁 Matrix Routing & System Security MORGAN SOUND XC48 PRO
-
🔀 Matrix Mixing & Output Routing:
Flexible component matrix routing allows any input signal to be assigned to any output. Tailor signal distribution based on your system requirements. -
🔒 Function Locking:
Lock individual functions to avoid accidental changes or ensure data protection in shared environments. -
🧠 Built-in Central Control Code Generator:
Easily integrate with intelligent control systems using the software’s built-in code generation for smart automation platforms. -
🌐 Remote Access Ready:
Supports Internet-based remote control via external UTWR box or TCP/IP network interface for system management from anywhere.
Comparison table between MORGAN SOUND 3 XC PRO Serial models
| model | XC26 PRO | XC36 PRO | XC48 PRO | |||
| Input channels and sockets | 2-way XLR female XLR socket | 3-way XLR female XLR socket | 4-way XLR female XLR socket | |||
| Output channels and sockets | 6-way XLR male XLR socket | 6-way XLR male XLR socket | 8-way XLR male XLR socket | |||
| Input Impedance | Balanced : 14KΩ | |||||
| Output Impedance | Balanced: 50 Ω | |||||
| PC Interface | 1 USB port on the front panel , 1 RS485 port (Phoenix socket) on the back panel, TCP/IP (RJ-45) port | |||||
| Common analog ratio | > 67 dB( 0dBu 1KHz) | |||||
| Input range | ≤+2 0.3 dBu (1KHz) | |||||
| Frequency Response | 19.7Hz ~ 20KHz (± 0.35dB ) | |||||
| Signal-to-Noise Ratio | > 116 dB (20.3dBu 1KHz) | |||||
| Distortion | <0.00 4 % (0dBu 1KHz) | |||||
| Channel separation | >108dB( 0cBu 1KHz) | |||||
| Input channel function | ||||||
| Input Noise Gate | Each input channel has a noise gate function, threshold value: -120dBu～0dBu, step: 1dBu | |||||
| Input Mute | Individual mute control for each channel | |||||
| Input Gain | Adjustment range: -80dB ～ +12dB, step: 0.1dB | |||||
| Input Delay | Each input channel has a separate delay control, the adjustment range is 0~1000ms, the fine adjustment step is 10us; the coarse adjustment step is 1ms | |||||
| Input Phase | In-phase (+) or out-phase (-) | |||||
| Input Equalization | Each input channel has 12 parametric equalizers, and the equalization mode can be selected from PEQ/Lo-Shelf/Hi-Shelf/APF 1st/APF 2nd
A. In PEQ mode, the adjustment parameters are: Center frequency: 19.7Hz~20KHz, 241 frequency points in total Bandwidth: 0.05oct~3oct, step size is 0.01oct Gain: -20dBu~+20dBu, step size is 0.1dBu B. The adjustable parameters in Lo-Shelf and Hi-Shelf states are: Center frequency: 19.7Hz-20KHz, 241 frequency points in total Slope: 6dB/12dB Gain: -20dBu～+20dBu, step size is 0.1dBu C. In APF 1st state, the center frequency is 19.7Hz~20KHz, with a total of 241 frequency points available. D. In the APF 2nd state, the adjustment parameters are: center frequency point: 19.7Hz~20KHz, a total of 241 frequency points, bandwidth: 0.05oct~3oct, and step size is 0.01oct. |
|||||
| Input Dynamic EQ | Each input channel has 2 dynamic equalizers in phase (+) or inverse (-), and the adjustable parameters are: Frequency turning point: 19.7Hz～20KHz, a total of 241 frequency points Bandwidth: 0.05oct～3oct, step size is 0.01oct. Target level value: -45dBu～+15dBu. Threshold: -45dBu～+15dBu. Ratio: 1.0:1～20:1, 1.0:1 to 1:2 in steps of 0.1, 1:2 to 1:20 in steps of 0.5. Response time: 0.3ms～200ms, when less than 1ms, the step size is 0.1ms; when greater than 1ms, the step size is 1ms. Release time: 50ms～5000ms, step size is 1ms | |||||
| Input Compression | Each input channel has a separate input compression setting, and the adjustable parameters are: Compression level: -40dBu ~ +20dBu, step size is 0.1dBu. Compression ratio: 1.0:1 ~ 20:1, 1.0:1 to 1:2 step size is 0.1, 1:2 to 1:20 step size is 0.5. Response time: 0.3ms ~ 1000ms, when less than 1ms, the step size is 0.1ms; when greater than 1ms, the step size is 1ms. Release time: 50ms ~ 5000ms step size is 1ms | |||||
| Input automatic gain | Each channel has a separate input automatic gain function, and the adjustable parameters are: Threshold: -80dBu～+20dBu, step 0.1dBu. Target level: -80dBu～+20dBu. Ratio: 1:1～1:20; 1:1 to 1:2 step 0.1; 1:2 to 1:20 step 0.5. Response time: 0.3～200ms, when less than 1ms, step 0.1ms, when greater than 1ms, step 1ms. Release time: 50～5000ms, step 1ms. | |||||
| Output channel function | ||||||
| Output mute | Individual mute control for each channel | |||||
| Input Selection | Each output channel can select different input channels individually, or any combination of input channels can be selected | |||||
| Output Gain | Adjustment range: -80dB～+12dB, step size 0.1dB | |||||
| Output delay | Each output channel has a separate delay control, the adjustment range is 0~1000ms, the fine adjustment step is 10 us; the coarse adjustment step is 1ms | |||||
| Output Phase | In-phase (+) or out-phase (-) | |||||
| Crossover settings | Each output channel can be set up independently for low-pass filter ( LPF) and high-pass filter (HPF), and the adjustable parameters are: Filter type: Lin-Ril/Bessel/Butterw
Frequency turning point: 19.7Hz-20KHz, 241 frequency points in total; A. Under Bessel and Butterw states, the attenuation slope is: 12dB/oct, 18dB/oct, 24dB/oct, 30dB/oct, 36dB/oct, 42dB/oct, 48dB/oct. B. In the Lin-Ril state, the attenuation slope is: 12dB/oct, 24dB/oct, 36dB/oct, 48dB/oct. |
|||||
| Limiter Settings | Each output channel can be set to a limiter individually, and the adjustable parameters are: Limiting level: -40dBu~+20dBu, step size is 0.1dBu. Response time: 0.3~1000ms, when less than 1ms, step size is 0.1ms, when greater than 1ms, step size is 1ms. Release time: 50~5000ms, step size is 1ms. | |||||
| Compressor Settings | Each output channel has a separate output compression setting, and the adjustable parameters are: Compression level: -40dBu ~ +20dBu, step size is 0.1dBu. Compression ratio: 1.0:1 ~ 20:1, 1.0:1 to 1:2 step size is 0.1, 1:2 to 1:20 step size is 0.5. Response time: 0.3ms ~ 1000ms, when less than 1ms, the step size is 0.1ms; when greater than 1ms, the step size is 1ms. Release time: 50ms ~ 5000ms step size is 1ms | |||||
| Output Balance | Each output channel can be set to 15 equalizers, and the equalization mode can be selected from PEQ/Lo-Shelf/Hi-Shelf/APF 1st/APF 2nd
A. In PEQ mode, the adjustment parameters are: Center frequency: 19.7Hz~20KHz, 241 frequency points in total Bandwidth: 0.05oct~3oct, step size is 0.01oct Gain: -20dB~+20dB, step size is 0.1dBu B. The adjustable parameters in Lo-Shelf and Hi-Shelf states are: Center frequency: 19.7Hz-20KHz, 241 frequency points in total Slope: 6dB/12dB Gain: -20dBu～+20dBu, step size is 0.1dBu C. In APF 1st state, the center frequency is 19.7Hz~20KHz, with a total of 241 frequency points available. D. In the APF 2nd state, the adjustment parameters are: center frequency point: 19.7Hz~20KHz, a total of 241 frequency points, bandwidth: 0.05oct~3oct, and step size is 0.01oct. |
|||||
| Output Routing | The output source of each output channel is selectable | |||||
| Component Matrix | The input source signal level of each output channel can be adjusted individually | |||||
| Signal Generator | The signal generator can generate white noise, sine wave, pink noise, and frequency sweep signal. The output signal size, frequency, and duration are adjustable. | |||||
| processor | 96KHz sampling frequency, 32-bit DSP processor, 32-bit A/D and D/A conversion | |||||
| show | 2×24 LCD blue backlight display settings, 5-segment LED display input/output precise digital level meter, mute and edit status | |||||
| Power consumption | ≤42.4W | |||||
| power supply | AC90V～240V 50/60Hz | |||||
| Product size (width x depth x height) | 482mm×228mm×44mm | |||||
| net weight | 3.55kg | |||||
| Shipping dimensions (width x depth x height) | 1PC:555X325X98mm/0.0177m ³ 6PCS:573X337X615mm/0.1188m ³ | |||||
| Gross Weight | 1PC:4.55(kg) 6PCS:28.5(kg) | |||||
