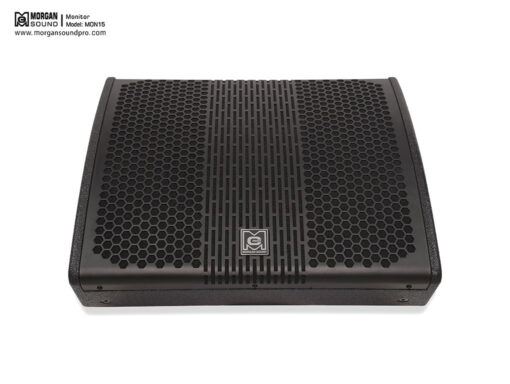

Monitor Active MORGAN Sound MON15A

Scope of application

⯈ Theaters, auditoriums
⯈ Banquet hall, large conference hall, multi-function hall
⯈ Stage return, side return, lip fill

Product Features:

⯈  MON15A is a monitor specially designed for the stage, equipped with a high- performance 15-inch 75mm voice coil mid-low frequency paper cone driver, and the treble is composed of a 75mm voice coil 1.5-inch outlet titanium membrane tweeter compression unit.
⯈  The newly processed titanium membrane treble satisfies both metal sound and high power and low distortion, and the sound quality is delicate and beautiful. The coaxial structure design effectively solves the problem of transmission path difference between conventional speaker units, and cooperates with the wide pointing angle of 80° (H) × 80° (V) of the horn coverage angle, so that the timbre of the far and near field is uniform and consistent.
⯈  The cabinet structure is placed at an angle of 55°, which can meet the shortdistance stage monitoring.
⯈  The built-in Class D switching power amplifier module and the DSP processing module with powerful computing power can provide large dynamic and clean output driving power while operating with high efficiency and stable and reliable operation;

Product Features:

System type	Single 15 – inch active DSP 2 – way loud speaker
Frequency response	65 Hz -20 kHz
Sensitivity (1W/1m)	98 dB
Nominal impedance	8Ω
Rated power (W)	450 W (AES)
Woofer	Ferrite, 1×15″ woofer/75mm voice coil
Tweeter	Ferrite, 1×1.5″ outlet compressed tweeter   driver/ 75mm voice coil
Coverage angle (HxV)	80°X80°
SPL	125 dB （Coiled）, 129 dB（Peak）
Pendants	M8 hanging point, bottom bracket
Connect the socket	Professional NL4MP 4-pin socket 2, 1+1-full-   range input
Size (W×D×H)	581 × 362 × 521mm
Net weight of the product	22 (kg)

Pose (Speaker Placement Effect):

In the main menu state, turn the multi-function button left and right, move the cursor to the POSIT (speaker placement effect) item, press the multi-function button to enter the sub-menu, choose from the three options of Corner, Wall, and Floor, select one of them, and press the multi-function button to confirm.

SUB (Subwoofer Matching Mode):

In the main menu state, turn the multi-function button left and right to move the cursor to the SUB (subwoofer matching mode) item, press the multi-function button to enter the subordinate menu, and choose between the three options of 15″ WF (15-inch speaker), 18″ WF (18-inch speaker), and BYPASS (bass pass- through), select one of them and press the multi-function button to confirm.

SETUP:

In the main menu state, turn the multi-function key left and right, move the cursor to the SETUP item, press the multi-function key to enter the sub-menu, and operate in the Contr and Save options. Turn the multi-function key left and right to move the cursor to select the Contr item and press the multi-function key to confirm, the cursor will move to the parameter adjustment of the Contr item, and then turn the multi-function key left and right to adjust the screen contrast, and press the multi-function key to confirm after adjustment. After all the parameters of the DSP are adjusted, move the cursor to the Save item and press and hold for 5 seconds, and then release the word OK (indicating that all the set parameters have been saved, and the next boot will automatically keep all the set parameters running), then move the cursor to EXIT and press the multi-function button to return to the main menu.

EXIT:

After all the parameters are adjusted, turn the multi-function button left and right in the main menu state to move the cursor to the EXIT item, press the multi- function button to return to the main interface, and if you enter the operation interface during the operation, the device will automatically return to the main interface if you do not do any operation for about 30 seconds.

Computer Software:

DSP is equipped with computer software debugging, as long as the USB interface of the DSP is connected to the computer with a data cable, you can use software debugging.

Power Ratings	CH1 550W@8Ω；CH2 100W@8Ω;
Link plugs	2 XLR IN，2 XLR OUT ，1 USB，2 Powercon   IN/OUT
Sam plerate	ADI 24 bit@48 kHz
Filter type	Butterworth,Linkwitz,bessel/6dB/oct~48dB/oct
Amplifier module	Dual-channel Class D
Gain	20 dB
Signal – to – noiser at   IOS/N	95 dB (A – weighted )
Operating voltage	AC 100 – 240V, 50/60 Hz

High Efficiency:
Dedicated high-power channel and one medium-power channel. This asymmetrical power distribution meets the power requirements of a typical multi- channel or small speaker system.

Self-Protection:
The amplifier module protection scheme is the most comprehensive in the professional audio industry and is designed with the principle of audio continuity. All relevant protection functions are implemented individually for each amplifier channel, ensuring high reliability.

Unbeatable Sound Quality:
Proprietary Class D technology, the amplifier module delivers unmatched audio specifications. This DDC technology is the reason for the highest dynamic range and lowest distortion in the professional audio industry.

Universal Power Supply:
The power technology is integrated into the amplifier module and provides universal power operation for both 120V and 230V, eliminating market-specific BYOD and associated reliability issues. The electricity supply is regulated, providing a stable supply of electricity on a global scale.

Security Certifications:
The EMC-compliant amplifier modules are safety certified and verified for EMC compliance.

DSP Panel Function:
Press the multi-function button to display the DSP menu, MP3 or BT will be automatically displayed after 10 seconds of non-operation. Powering off the MP3 will automatically show the DSP function.

Bluetooth Status Button:
1. Short press the button of the previous track to play the previous song.
2. Press the play/pause button to play or pause the current track. Long press to switch modes. (Convert between Bluetooth and MP3)
3. Press the button of a song to play the next track.

MP3 Status Button:
1. Short press the previous song button to play the previous track song, and long press to turn on or off for shuffle.
2. Short press the play/pause button to play or pause the current track, and long press to change the mode.(Convert between MP3 and Bluetooth)
3. Press the button for a short time to play the next track, and press and hold to turn on or off for a repeating track. (After turning on or off the repeat function, you need to short press the play button once to play the current track normally)

Main interface:
Turn on the main interface and turn the multi-function button in the main interface to adjust the total volume. During the adjustment process, the total signal output, signal 1 output, and
signal 2 output of the main interface will have corresponding information changes.

Voltage limit protection：
When the input signal is too large during operation (i.e., clipping), the word “CLIP” will appear on the display, and the input signal is adjusted to a smaller level, and the “CLIP” will be eliminated when the input signal is adjusted to a smaller size without distortion.

Main menu：
Press the multi-function button in the main interface to enter the main menu, and the main functions of the main menu have six modules:
MODE, EQ, POSIT, SUB, SETUP, EXIT.

MODE：
In the main menu state, turn the multi-function button left and right to move the cursor to the MODE item, press the multi-function button to enter the subordinate menu, select among the four modes of Music, Live, Speech, and Club, move the cursor to select one of the modes, and press the multi-function button to confirm.

EQ：
In the main menu state, turn the multi-function button left and right, move the cursor to the EQ item, press the multi-function button to enter the lower menu, and adjust the volume in the Bass and Treble options. Turn the multi-function button left and right to move the cursor, select the Bas item and press the multi- function key to confirm, the cursor will move to the parameter adjustment of the Bass item, and then turn the multi-function key left and right to increase or decrease the volume, and press the multi-function key to confirm after the adjustment. The Treble adjustment operation is the same, after all adjustments are made, move the cursor to Exit and press the multi-function key to return to the main menu.
